MOTORCYCLE

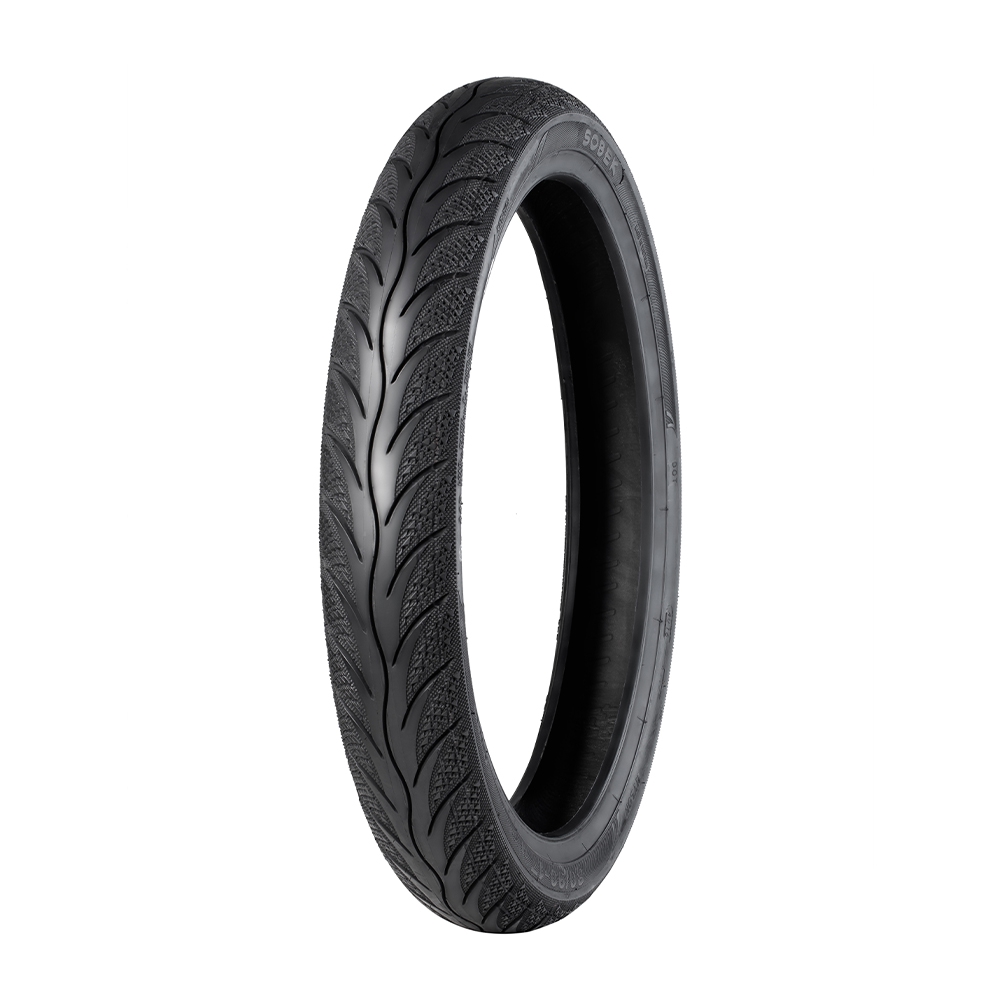

S1704
TIRES / 2/3 WHEEL / MOTORCYCLE
70/90-14
80/90-14
90/90-14
100/90-14
70/90-16
80/90-16
90/90-16
2.25-17
2.50-17
2.75-17
60/80-17
70/80-17
70/90-17
80/90-17
90/80-17
100/70-17
110/70-17
120/70-17
150/70-17
80/90-18
80/90-14
90/90-14
100/90-14
70/90-16
80/90-16
90/90-16
2.25-17
2.50-17
2.75-17
60/80-17
70/80-17
70/90-17
80/90-17
90/80-17
100/70-17
110/70-17
120/70-17
150/70-17
80/90-18
Share
| SIZE | PATTERN | PLY RATING | O.D. (mm) |
S.W. (mm) |
MAX LOAD (KG) |
INFLATION (P.S.I) |
| 70/90-14 | S1704 | 34L/40L | 478 | 68 | 118/140 | 33/40 |
| 80/90-14 | S1704 | 40P/46P | 502 | 79 | 140/170 | 33/40 |
| 90/90-14 | S1704 | 46P/52P | 528 | 91 | 170/200 | 33/40 |
| 100/90-14 | S1704 | 52P/57P | 544 | 103 | 195/230 | 33/40 |
| 70/90-16 | S1704 | 36P/42J | 534 | 67 | 125/150 | 33/40 |
| 80/90-16 | S1704 | 43P/48P | 550 | 78 | 155/180 | 33/40 |
| 90/90-16 | S1704 | 48P/55P | 572 | 90 | 180/218 | 33/40 |
| 2.25-17 | S1704 | 33L/38L | 556 | 59 | 115/132 | 33/40 |
| 2.50-17 | S1704 | 38L/43L | 574 | 65 | 132/155 | 33/40 |
| 2.75-17 | S1704 | 41P/47P | 586 | 72 | 145/75 | 33/40 |
| 60/80-17 | S1704 | 27P | 537 | 59 | 97.5 | 33 |
| 70/80-17 | S1704 | 35P/42P | 545 | 67 | 121 | 33/40 |
| 70/90-17 | S1704 | 38P/43P | 560 | 70 | 132/155 | 33/40 |
| 80/90-17 | S1704 | 44P/50P | 579 | 78 | 160/190 | 33/40 |
| 90/80-17 | S1704 | 46P/52P | 584 | 88 | 170/200 | 33/40 |
| 100/70-17 | S1704 | 49P/55P | 577 | 99 | 185/218 | 33/41 |
| 110/70-17 | S1704 | 54P/60P | 592 | 103 | 212/250 | 33/40 |
| 120/70-17 | S1704 | 58P/64P | 604 | 121 | 236/280 | 33/41 |
| 150/70-17 | S1704 | 69P/75P | 650 | 153 | 325/375 | 33/41 |
| 80/90-18 | S1704 | 45P/51P | 600 | 78 | 165/195 | 33/41 |
