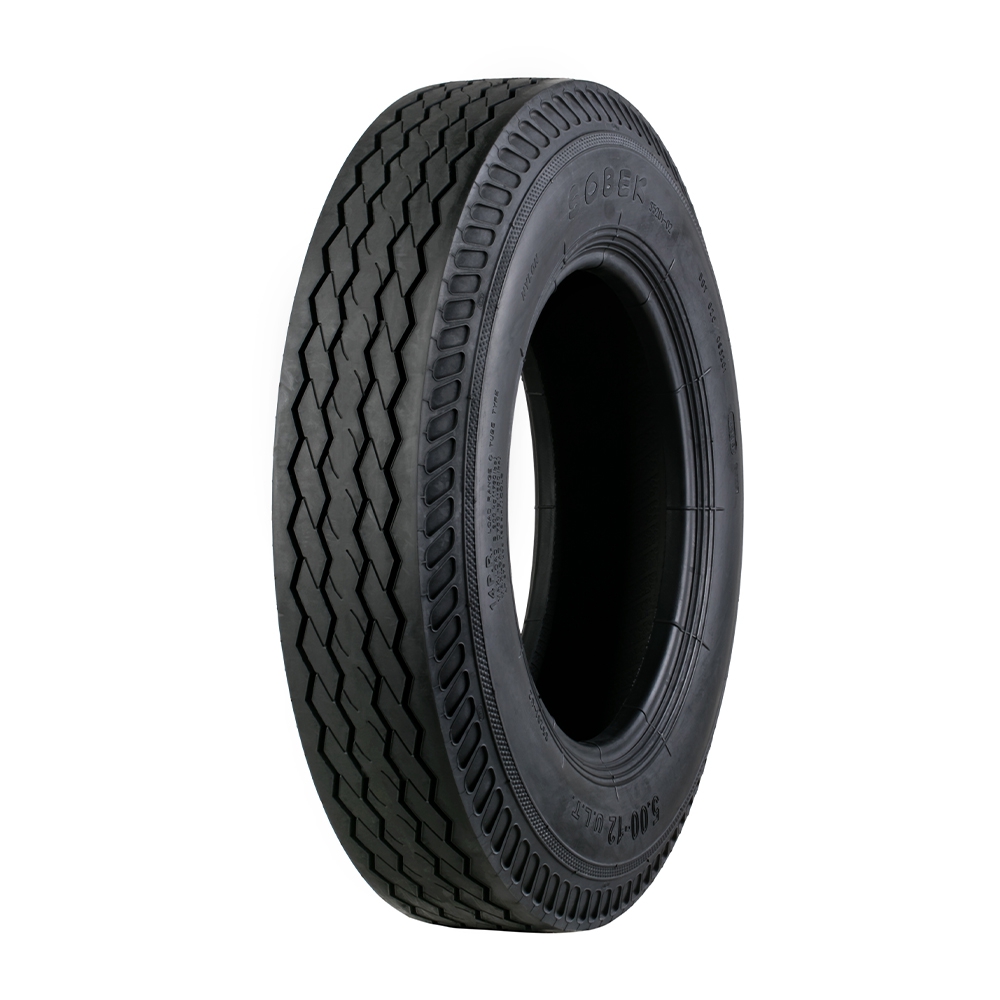

LIGHT TRUCK
S5201
TIRES / POWER / LIGHT TRUCK
4.50-12
5.00-12
5.50-13
6.00-14
6.50-15
7.00-15
6.50-16
7.00-16
7.50-16
8.25-16
5.00-12
5.50-13
6.00-14
6.50-15
7.00-15
6.50-16
7.00-16
7.50-16
8.25-16
Share
| SIZE | PATTERN | PLY RATING | O.D. (mm) |
S.W. (mm) |
MAX LOAD (KG) |
INFLATION (P.S.I) |
| 4.50-12 | S5201 | 6/8/10/12/14 | 546 | 129 | 335/400/460/475/570 | 44/58/73/75/83 |
| 5.00-12 | S5201 | 8/12/14 | 566 | 143 | 485/680/750 | 58/75/83 |
| 5.50-13 | S5201 | 12/14 | 618 | 153 | 750/800 | 75/83 |
| 6.00-14 | S5201 | 12/14 | 692 | 172 | 850/900 | 83/100 |
| 6.50-15 | S5201 | 12/14 | 735 | 195 | 1010/1100 | 80/90 |
| 7.00-15 | S5201 | 12/14 | 765 | 210 | 1120/1210 | 83/94 |
| 6.50-16 | S5201 | 12/14 | 759 | 195 | 1030/1115 | 83/94 |
| 7.00-16 | S5201 | 12/14/16 | 781 | 207 | 1170/1265/1360 | 83/94/102 |
| 7.50-16 | S5201 | 12/14/16/20 | 820 | 217 | 1320/1450/1600/1700 | 106/120/120/122 |
| 8.25-16 | S5201 | 18/20 | 854 | 250 | 1800/2000 | 120/124 |
